V27M000000S016,AEL艾尔有源振荡器,3225贴片广东会

当前位置：首页 » 欧美进口广东会 » AEL广东会 » V27M000000S016,AEL艾尔有源振荡器,3225贴片广东会

prevnext

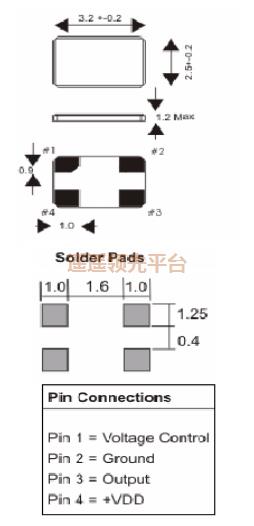

V27M000000S016,AEL艾尔有源振荡器,3225贴片广东会

频率：27.000000MHz

尺寸：3225mm

Original model 原厂编码	V27M000000S016
Manufacturer 品牌	AEL有源广东会
Part Series 型号	V27M000000S016
Type 类型	VCXO差分广东会
Frequency 频率	27.000000MHz
Output Type 输出方式	CMOS
Supply Voltage 电压	1.8V
Frequency Stability 频率稳定性	± 100 ppm
Operating Temperature 工作温度	-10°C to +70°C
Package Size 包装尺寸	3225mm

订购热线：13380314981

V27M000000S016,AEL艾尔有源振荡器,3225贴片广东会详细参数

Original model 原厂编码	V27M000000S016
Manufacturer 品牌	AEL有源广东会
Part Series 型号	V27M000000S016
Type 类型	VCXO
Frequency 频率	27.000000MHz
Output Type 输出方式	CMOS
Supply Voltage 电压	1.8V
Frequency Stability 频率稳定性	± 100 ppm
Operating Temperature 工作温度	-10°C to +70°C
Package Size 包装尺寸	3225mm
Package Height 厚度	1.2mm
Termination 脚位	4-pad
Package Type 封装类型	4-SMD
Lead Free 无铅	Yes
Mounting Style 安装方式	Surface Mount
Packaging 包装	Tape and Reel

V27M000000S016,AEL艾尔有源振荡器,3225贴片广东会相关产品

315LB3C1000T	CTS-Frequency Controls	315	VCXO	100 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
315LB3C1228T	CTS-Frequency Controls	315	VCXO	122.88 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
315LB3C1250T	CTS-Frequency Controls	315	VCXO	125 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
315LB3C1536T	CTS-Frequency Controls	315	VCXO	153.6 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
315LB3C1555T	CTS-Frequency Controls	315	VCXO	155.52 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
315LB3C1562T	CTS-Frequency Controls	315	VCXO	156.25 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
315LB3C1660T	CTS-Frequency Controls	315	VCXO	166 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
315LB3I1000T	CTS-Frequency Controls	315	VCXO	100 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
315LB3I1228T	CTS-Frequency Controls	315	VCXO	122.88 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
315LB3I1250T	CTS-Frequency Controls	315	VCXO	125 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
315LB3I1536T	CTS-Frequency Controls	315	VCXO	153.6 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
315LB3I1555T	CTS-Frequency Controls	315	VCXO	155.52 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
315LB3I1562T	CTS-Frequency Controls	315	VCXO	156.25 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
315LB3I1660T	CTS-Frequency Controls	315	VCXO	166 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
315LB5C1000T	CTS-Frequency Controls	315	VCXO	100 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C
315LB5C1228T	CTS-Frequency Controls	315	VCXO	122.88 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C
315LB5C1250T	CTS-Frequency Controls	315	VCXO	125 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C
315LB5C1536T	CTS-Frequency Controls	315	VCXO	153.6 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C
315LB5C1555T	CTS-Frequency Controls	315	VCXO	155.52 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C
315LB5C1562T	CTS-Frequency Controls	315	VCXO	156.25 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C
315LB5C1660T	CTS-Frequency Controls	315	VCXO	166 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C
315LB5I1000T	CTS-Frequency Controls	315	VCXO	100 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
315LB5I1228T	CTS-Frequency Controls	315	VCXO	122.88 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
315LB5I1250T	CTS-Frequency Controls	315	VCXO	125 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
315LB5I1536T	CTS-Frequency Controls	315	VCXO	153.6 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
315LB5I1555T	CTS-Frequency Controls	315	VCXO	155.52 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
315LB5I1562T	CTS-Frequency Controls	315	VCXO	156.25 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
315LB5I1660T	CTS-Frequency Controls	315	VCXO	166 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
315LB6C1000T	CTS-Frequency Controls	315	VCXO	100 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
315LB6C1228T	CTS-Frequency Controls	315	VCXO	122.88 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
315LB6C1250T	CTS-Frequency Controls	315	VCXO	125 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
315LB6C1536T	CTS-Frequency Controls	315	VCXO	153.6 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
315LB6C1555T	CTS-Frequency Controls	315	VCXO	155.52 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
315LB6C1562T	CTS-Frequency Controls	315	VCXO	156.25 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
315LB6C1660T	CTS-Frequency Controls	315	VCXO	166 MHz	HCMOS	3.3V	±20ppm	-20°C ~ 70°C
317LB3C1000T	CTS-Frequency Controls	317	VCXO	100 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
317LB3C1228T	CTS-Frequency Controls	317	VCXO	122.88 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
317LB3C1250T	CTS-Frequency Controls	317	VCXO	125 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
317LB3C1536T	CTS-Frequency Controls	317	VCXO	153.6 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
317LB3C1555T	CTS-Frequency Controls	317	VCXO	155.52 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
317LB3C1562T	CTS-Frequency Controls	317	VCXO	156.25 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
317LB3C1660T	CTS-Frequency Controls	317	VCXO	166 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C
317LB3I1000T	CTS-Frequency Controls	317	VCXO	100 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
317LB3I1228T	CTS-Frequency Controls	317	VCXO	122.88 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
317LB3I1250T	CTS-Frequency Controls	317	VCXO	125 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
317LB3I1536T	CTS-Frequency Controls	317	VCXO	153.6 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
317LB3I1555T	CTS-Frequency Controls	317	VCXO	155.52 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
317LB3I1562T	CTS-Frequency Controls	317	VCXO	156.25 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
317LB3I1660T	CTS-Frequency Controls	317	VCXO	166 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C
317LB5C1000T	CTS-Frequency Controls	317	VCXO	100 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C
317LB5C1228T	CTS-Frequency Controls	317	VCXO	122.88 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C
317LB5C1250T	CTS-Frequency Controls	317	VCXO	125 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C
317LB5C1536T	CTS-Frequency Controls	317	VCXO	153.6 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C
317LB5C1555T	CTS-Frequency Controls	317	VCXO	155.52 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C
317LB5C1562T	CTS-Frequency Controls	317	VCXO	156.25 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C
317LB5C1660T	CTS-Frequency Controls	317	VCXO	166 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C
317LB5I1000T	CTS-Frequency Controls	317	VCXO	100 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
317LB5I1228T	CTS-Frequency Controls	317	VCXO	122.88 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
317LB5I1250T	CTS-Frequency Controls	317	VCXO	125 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
317LB5I1536T	CTS-Frequency Controls	317	VCXO	153.6 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C
